CNC Machine Shop – Carrollton, Texas
Precision. Innovation. Mastery.
Dallas Precision Machining has established a reputation for delivering high-quality precision components with efficient turnaround times.
Our commitment to excellence is driven by expert craftsmanship, advanced technology, and unwavering dedication to customer specifications.
ITAR Compliant
ISO Compliant
AS9100D, ISO 9001:2015
Our mission is simple: help innovators launch better products, faster. Our CNC Machine Shop capabilities pair advanced automation with a craftsman’s eye for detail, achieving tight tolerance in repeatability and sub-24-hour quoting so you can shorten design cycles and win time-to-market battles. Every job moves through a lean, paperless workflow managed by seasoned machinists who treat your parts like their own.
Dream It.
We Machine It.
About Dallas Precision Machining
Dallas Precision Machining, DPM, is a CNC Macine Shop that emerged from our sister company Pacific Sensor. We recognized the need for faster turn around times and tighter quality control on machined parts. We realized that if we wanted it done right, we were going to have to do it ourselves, and thus DPM was born.
What began as a two-machine garage shop has grown into a 16,000 sq ft facility equipped with Mazak INTEGREX mill-turn centers, Haas VF-series super-speed mills, and fully programmable Cosen band saws. Technology that lets us deliver tight-tolerance prototypes and lights-out production runs on the same floor.
Let us take your ideas from vision to reality.
Our CNC machine shop offers 3-, 4-, and 5-axis milling, turning, and Swiss machining.
Our lineup includes...

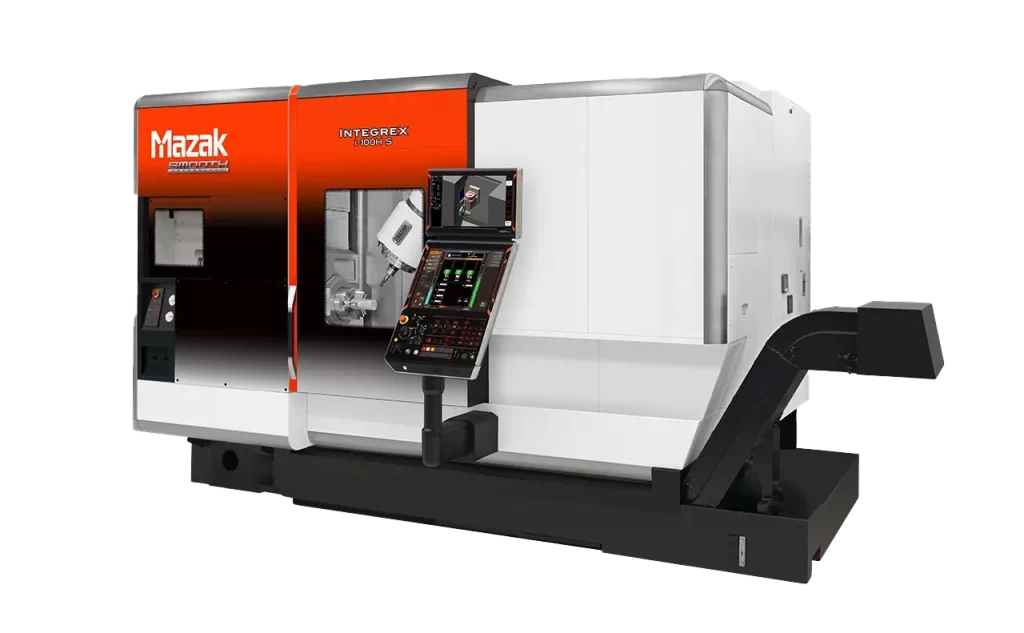

Mazak Integrex i100-HS
CNC 5-Axis Mill-Turn Center
Achieve complete machining in a single setup with simultaneous 5-axis milling and turning. Ideal for aerospace, medical, and complex components.
Traveling Capabilities
- X Axis – 21"
- Y Axis – 8"
- Z Axis – 35"
- Chuck Size | 6"
- Max Cut Diameter | Φ24"
- Max Cut Length | 33"
Leadwell T-7SMY CNC Lathe
Multi-Axis CNC Lathe
Produce finished parts in one setup with Y-axis milling, live tooling, and a sub-spindle handoff. Ideal for production work and complex geometries requiring turning and milling in a single process.
Traveling Capabilities
- X Axis – 8.1"
- Z Axis – 17.7"
- Y Axis – ±1.97" (3.94" total)
- B Axis (Sub-spindle) – 19.7" (16.93" with parts catcher)
- C Axis – 0.001° resolution (main & sub)
- Max Turn Diameter | 14.9"
- Max Turning Length | 18"

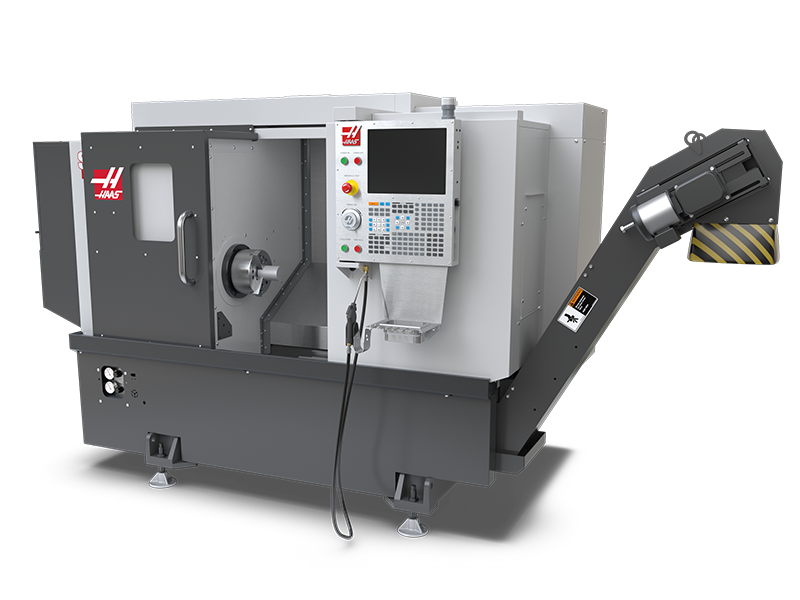

HAAS ST-15Y
CNC 5-Axis Mill-Turn Center
Achieve complete machining in a single setup with simultaneous 5-axis milling and turning. Ideal for aerospace, medical, and complex components.
Traveling Capabilities
- X Axis – 7.88"
- Y Axis – +/- 2"
- Z Axis – 16"
- Chuck Size | 8.3"
- Max Cut Diameter | 11"
- Max Cut Length | 16"
HAAS TM-2P
40 in X Travel CNC Mill + 4th Axis
Cost-effective tool-room mill delivering precise milling, drilling, and pocketing with optional 4-axis capabilities. A powerhorse in the field.
Traveling Capabilities
- X Axis – 40"
- Y Axis – 16"
- Z Axis – 16"
- 4th Axis Rotary Table
- Max Spindle Speed | 6K RPM
- Total Load Capacity | 159 KG

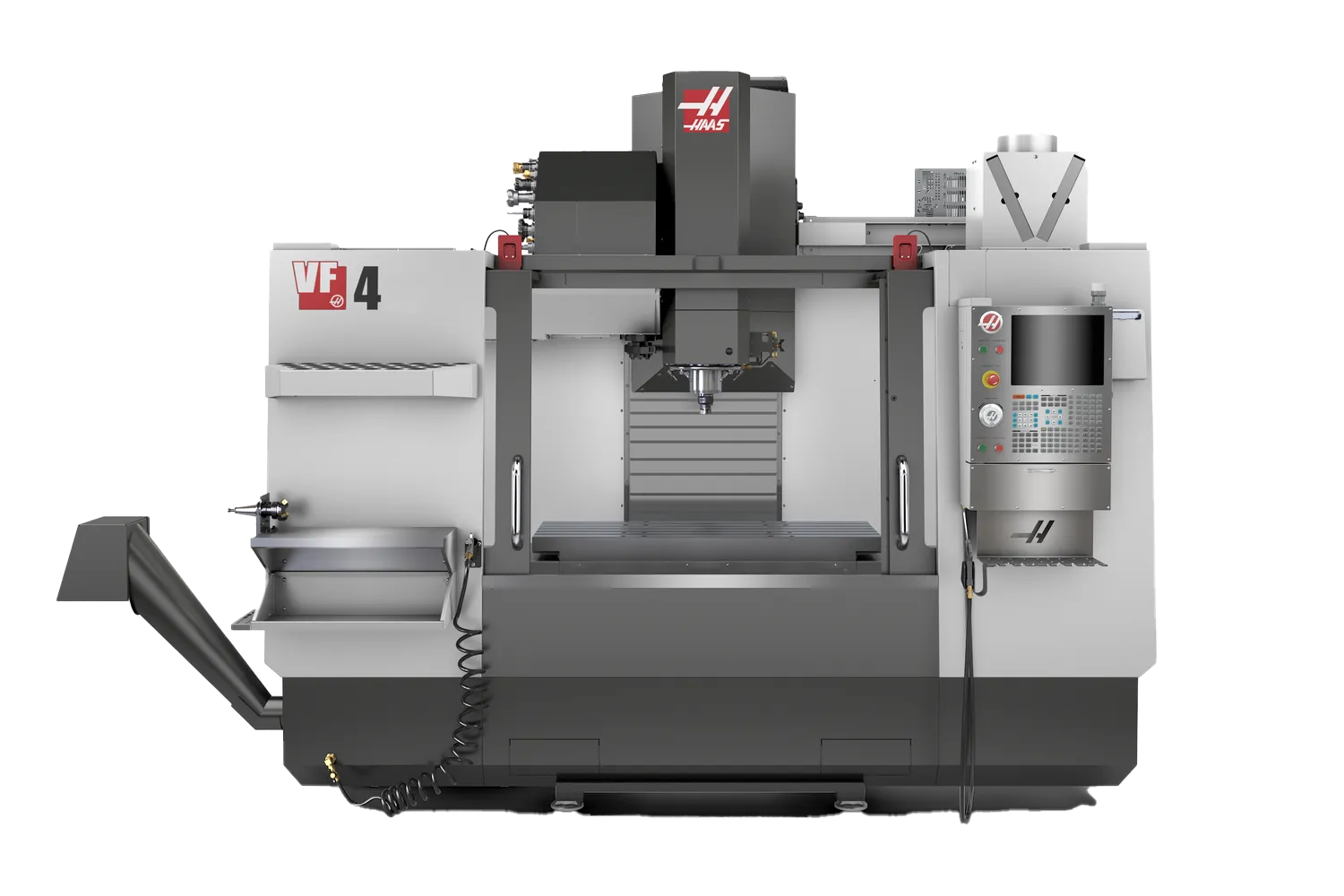

HAAS VF-4
50 in X Large-Capacity CNC Mill
Handles large molds, fixtures, and production parts while maintaining tight tolerances across a generous 50-inch X envelope with a 4th Axis.
Traveling Capabilities
- X Axis – 50"
- Y Axis – 20"
- Z Axis – 25"
- 4th Axis Rotary Table
- Max Spindle Speed | 8100 RPM
- Total Load Capacity | 1588 KG

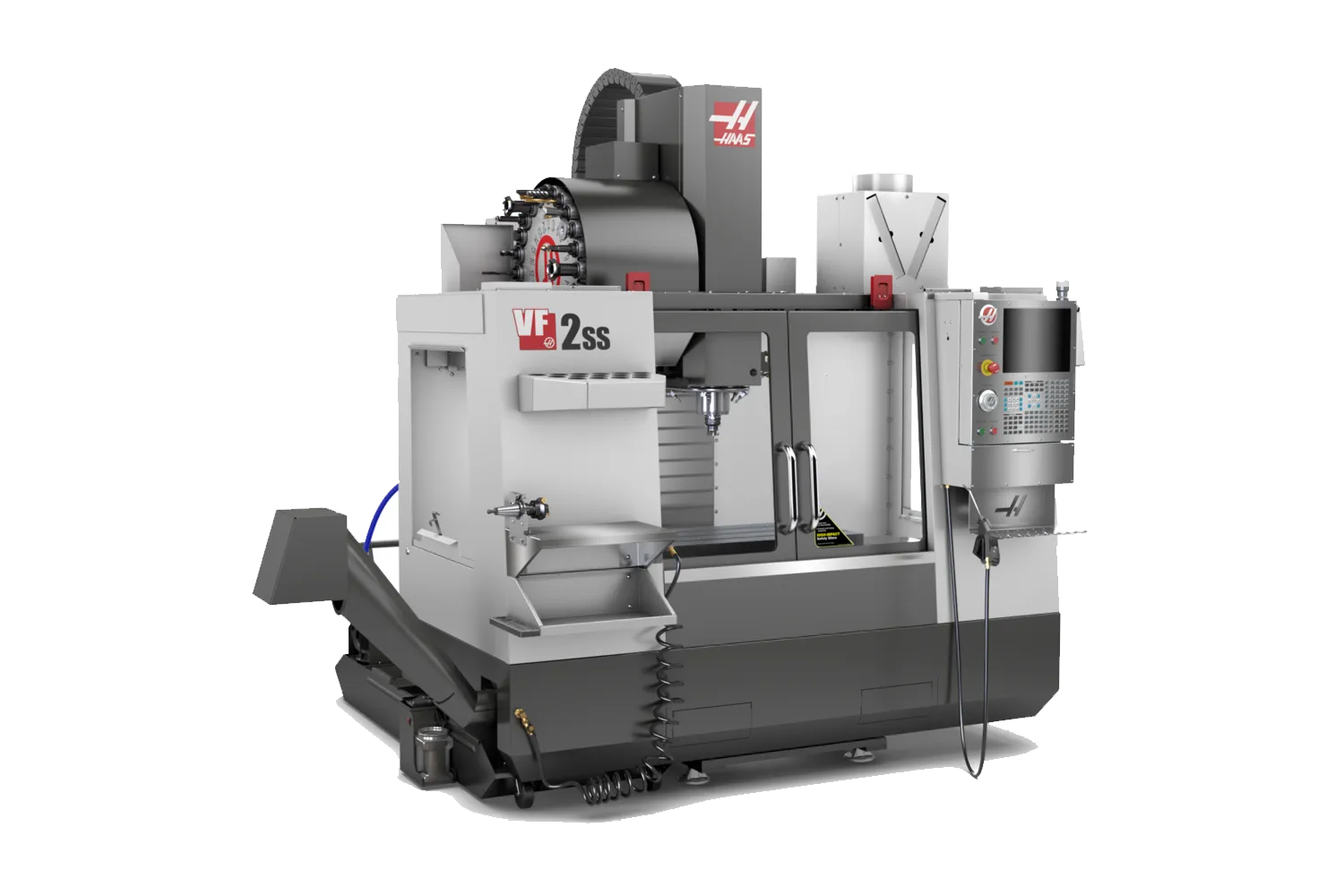

HAAS VF-2SS
30 in X Super-Speed Mill + Thru-Coolant
High-rpm spindle and thru-spindle coolant enable rapid material removal while protecting tools and surface finish. Ensuring a professional outcome.
Traveling Capabilities
- X Axis – 30"
- Y Axis – 16"
- Z Axis – 20"
- 4th Axis Rotary Table with Thru Coolant
- Rapid Traverse Rate | 1400 IPM
- Total Load Capacity | 680 KG

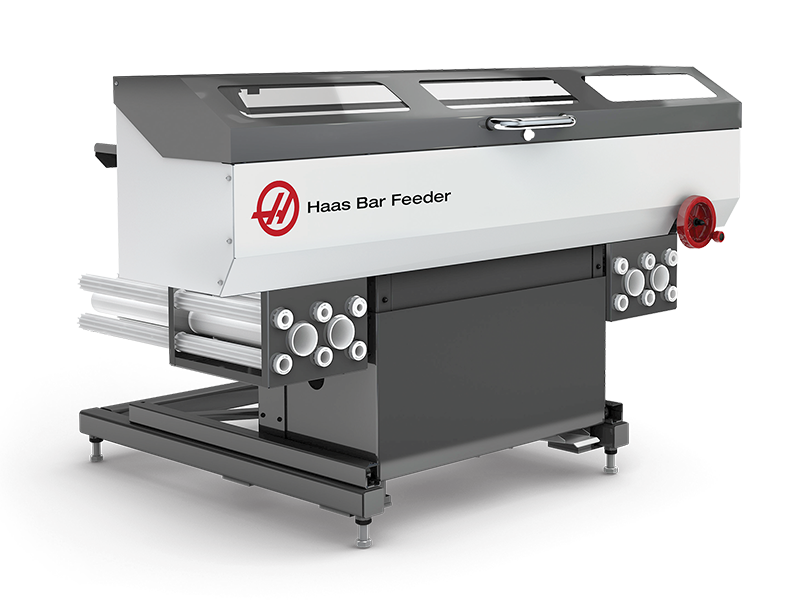

HAAS BAR FEEDER
Automatic Bar Feeder
Streamline lights-out CNC turning with fast changeovers and consistent bar loading across Haas lathes.
Feeding Capabilities
- Bar Diameter Range – 0.375–3.00" (10–76 mm)
- Bar Length Capacity – up to 48" (1219 mm)
- Tray Capacity – 30 bars × 1" (30 × 25 mm)
- Max Total Bar Weight – 650 lb (295 kg)
- Positioning Accuracy – ±0.010" (±0.25 mm)
- Pushrod Thrust | 100 lbf (445 N)
- Machine Weight | 900 lb (408 kg)

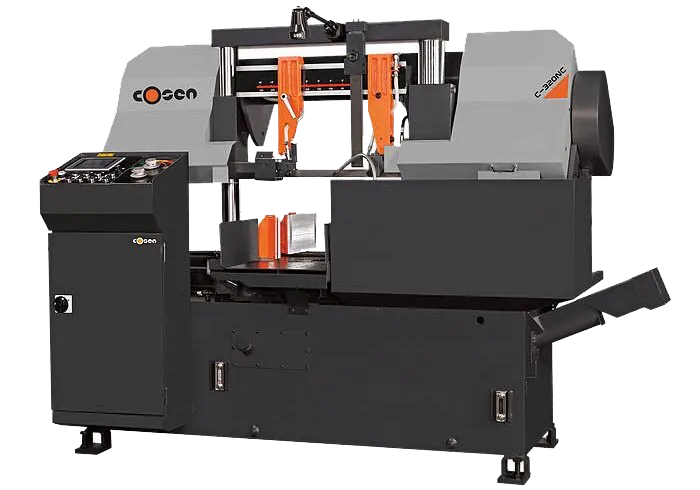

COSEN AUTO SAW C-320NC
CNC Band Saw
An automatic dual-column band saw delivers high-volume, unattended cutting of round and rectangular stock up to 12.5".
Cutting Capacity
- Round – 12.5"
- Rectangular (H × W) – 12.5" × 14.9"
- Blade Motor | 5 HP
- Blade Speed | 53 - 337'/min
A FEW OF OUR CLIENTS
OUR SERVICES
Industries We Serve
Robotics
Components for robotics. Accurate joints, bearings, and precision fits manufactured by Dallas Precision Machining.
Aerospace
Component fabrication and inspection for aerospace programs. Certified quality and structural assemblies by Dallas Precision Machining.
Defense
ITAR-ready machining for mission-critical hardware. We emphasize durability, tolerance control, and repeatability at Dallas Precision Machining.
Telecommunications
Tight-tolerance CNC machining for telecom: RF enclosures, heat sinks, waveguides, and antenna hardware with EMI shielding, thermal control, and rapid lead times.
Industrial
Industrial CNC machining for plastics and stainless steel: 316/316L manifolds, sanitary fittings, and engineered-plastic components with tight tolerances and rapid lead times.
Medical
Precision CNC machining for medical devices: aluminum and stainless medical components.
Dallas Precision Machining by the numbers.
Happy clients
0
Project Turnaround
0
hr
Projects completed
0
+
Square Footage
0
Partners we love to work with
Our Capabilities

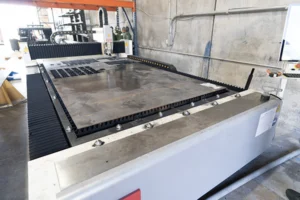

Laser Cutting
Break Press
Laser Welding
3D Printing
CNC Machining
Sheet Metal
CLIENT FEEDBACK
FAQ
ask us
anything
What design files do you accept for CNC precision manufacturing?
We accept common CAD and technical drawing files for CNC precision manufacturing, including STEP, STP, IGES, DXF, DWG, STL, and PDF drawings. For the most accurate quote, include material requirements, quantities, tolerances, finish specifications, and any critical dimensions.
What are typical lead times for precision CNC machining?
Prototypes: 3–10 business days. Production: 2–6 weeks depending on complexity, materials, and finishing. Rush options are available.
Do you sign NDAs and protect IP?
Yes. We honor customer NDAs and can provide ours. Files are stored securely; only the project team has access.
How are quotes calculated?
We price based on material cost and availability, programming/setup time, machine cycle time, tooling/fixtures, inspection requirements, finishing (anodize, passivate, etc.), and packaging/shipping. We include DFM suggestions when they meaningfully reduce cost or lead time
What is CNC precision manufacturing?
CNC precision manufacturing is the process of using computer-controlled machining equipment to produce parts with tight tolerances, repeatable accuracy, and consistent surface quality. It is commonly used for aerospace, automotive, robotics, medical, industrial, and custom product development where exact measurements and dependable part quality are required.
How is precision manufacturing different from standard machining?
Precision manufacturing focuses on tighter tolerances, repeatability, quality control, and advanced production planning. While standard machining may be suitable for general parts, precision manufacturing is used when components must meet strict dimensional requirements, material specifications, and performance standards.
What materials can be used for precision CNC machining?
A precision machining shop can typically work with aluminum, stainless steel, carbon steel, brass, copper, plastics, and specialty materials depending on the application. Material selection depends on strength, weight, corrosion resistance, heat tolerance, machinability, and the final use of the part.
Can you help with prototypes and production CNC machining?
Yes. Precision CNC machining is commonly used for both one-off prototypes and repeat production runs. Prototyping allows designs to be tested and refined before full production, while production machining focuses on repeatability, efficiency, and consistent part quality across every order.
